ColorBox is a nine-module color science toolbox covering calibration, lighting and LUT analysis, data views, comparisons, tools, image and camera analysis, and ICC profiles. Its Lighting Analysis module is scheduled for release in November 2026, with the remaining modules planned for 2027.

Lighting Analysis

ColorBox Lighting Analysis turns spectral measurements into a clear understanding of your light. Explore color quality, compare sources, track changes over time, and examine advanced metrics from camera rendering to UV and plant lighting. Bring every result together in professional reports, and make lighting decisions with confidence.

Capture Measurements

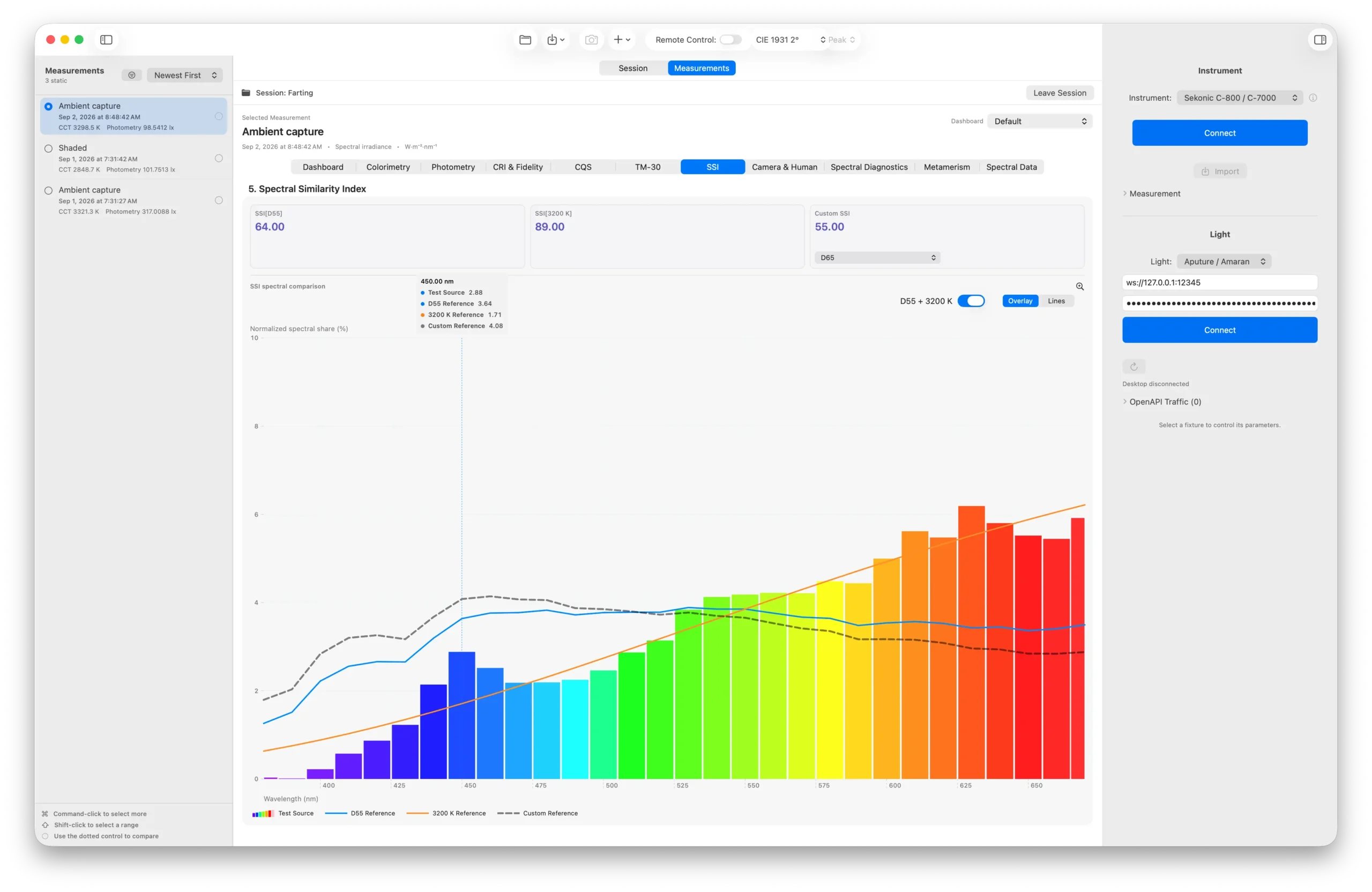

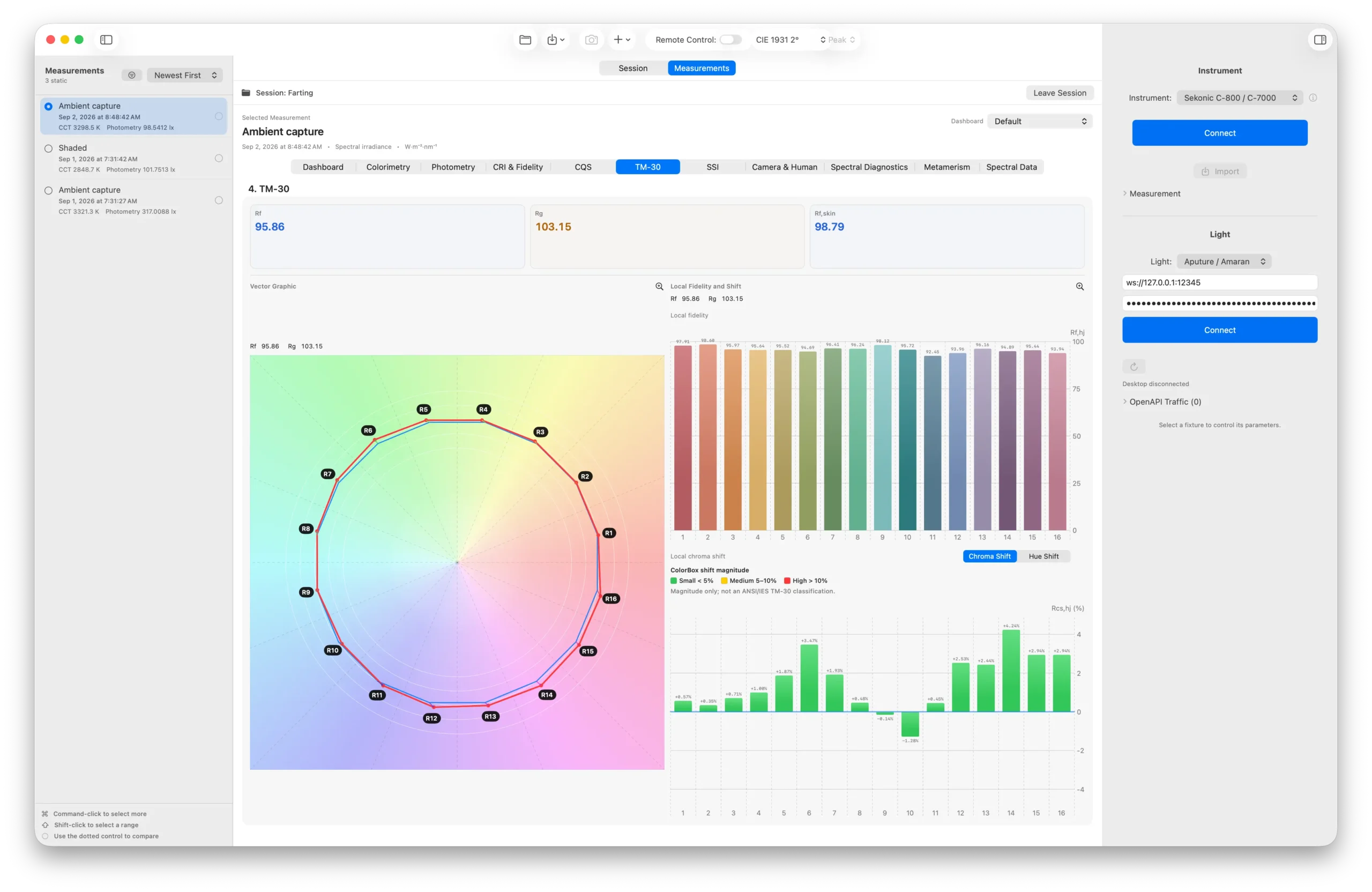

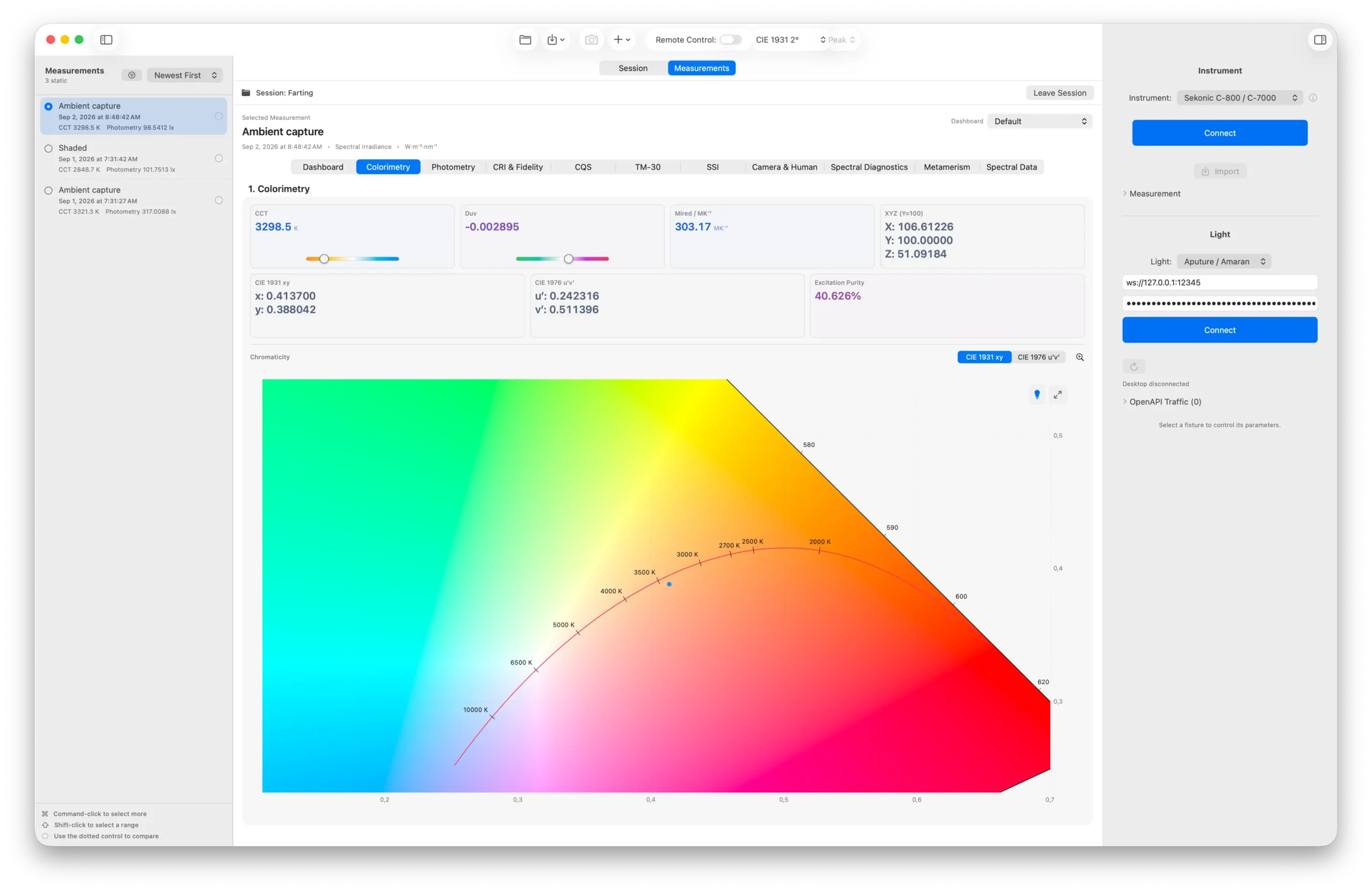

Capture measurements from compatible instruments and explore CCT, Duv, illuminance, CRI, TM-30, SSI, TLCI, and TLMF alongside the full spectrum. Go deeper with melanopic EDI, PPFD, and supported UV and NIR metrics. Compare lights side by side to match sources, assess color quality, and reveal differences in output and spectral performance.

Compare and Analyze

Compare measurements side by side to evaluate color quality, spectral characteristics, and light source performance.

Compare

Capture and Monitor

Measure radiance, irradiance, reflectance, and flicker with supported instruments. Capture individual readings or monitor measurements in real time.

REAL TIME

INSTRUMENT COMPATIBILITY

Seamlessly integrate compatible spectrometers, spectroradiometers, and colorimeters into a unified measurement workflow.

INSTRUMENTS

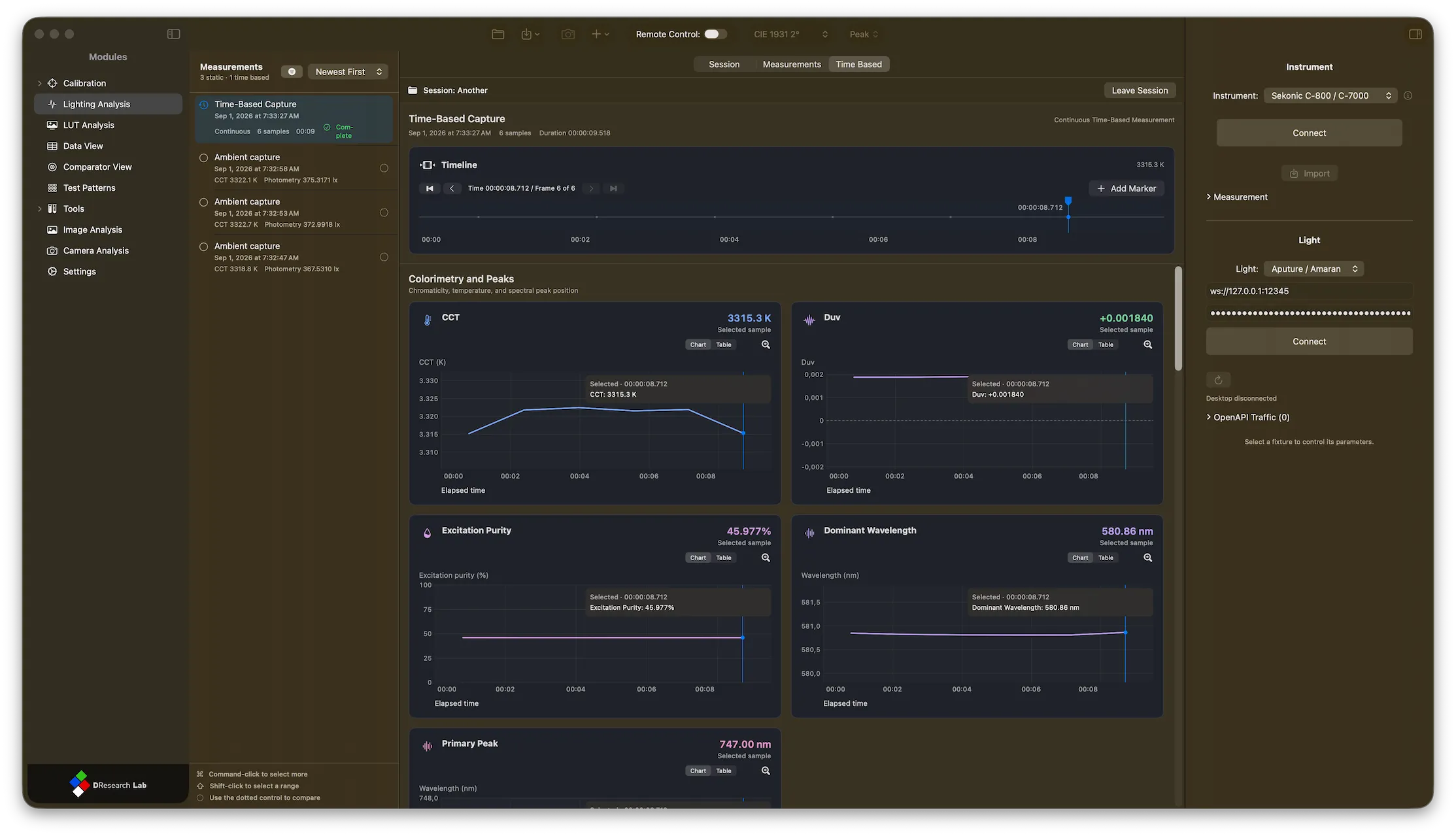

Capture Time Series

Capture light over time to reveal warm-up, output stability, and color drift. Record continuously, at timed intervals, or at manual checkpoints, then follow changes in illuminance, CCT, Duv, CRI, TM-30, and other supported metrics. Add markers and notes to connect each change with your test conditions and compare performance across the complete recording.

CUSTOMIZE

Select any metrics to view.

REPORTS

Genertate diviation reports.

INSPECT

Inspect any masurements.

LIGHT CONTROL AUTOMATION

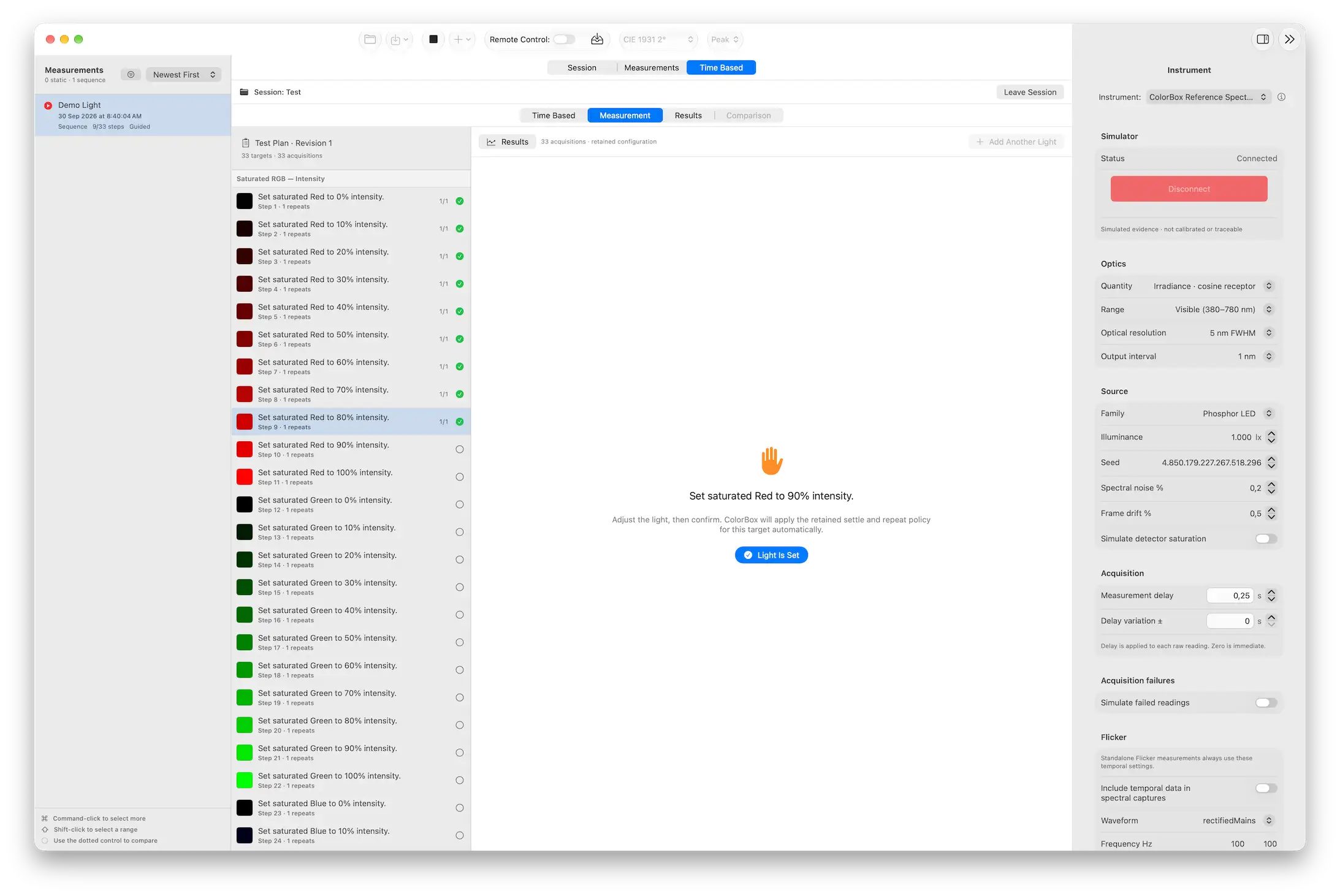

Sequences

Build repeatable test sequences to measure and compare lights across different brightness levels, color temperatures, and settings. Control compatible DMX, Godox, Aputure and amaran fixtures directly, or follow guided steps for manual adjustments. Keep every measurement linked to its test condition, making it easy to compare fixtures and repeat the same evaluation consistently.

Automatic Control

Connect to compatible lighting systems through Aputure, Amaran, Godox, Hue, Casambi, Matter, DMX, Zigbee, and DALI. Automatically adjust brightness, color temperature, and other supported parameters while ColorBox captures measurements throughout the sequence.

ColorBox Remote

Control and trigger measurement sequences from your iPhone or iPad using the ColorBox Remote app. Ideal for lights positioned far from your workstation, difficult-to-reach installations, or measurements performed remotely.

Manual Guidance

For lights without supported control protocols, ColorBox guides you step by step through each adjustment. Manually set the requested parameters, capture measurements, and complete structured, repeatable sequences without automated light control.

Active Safety & Assurance

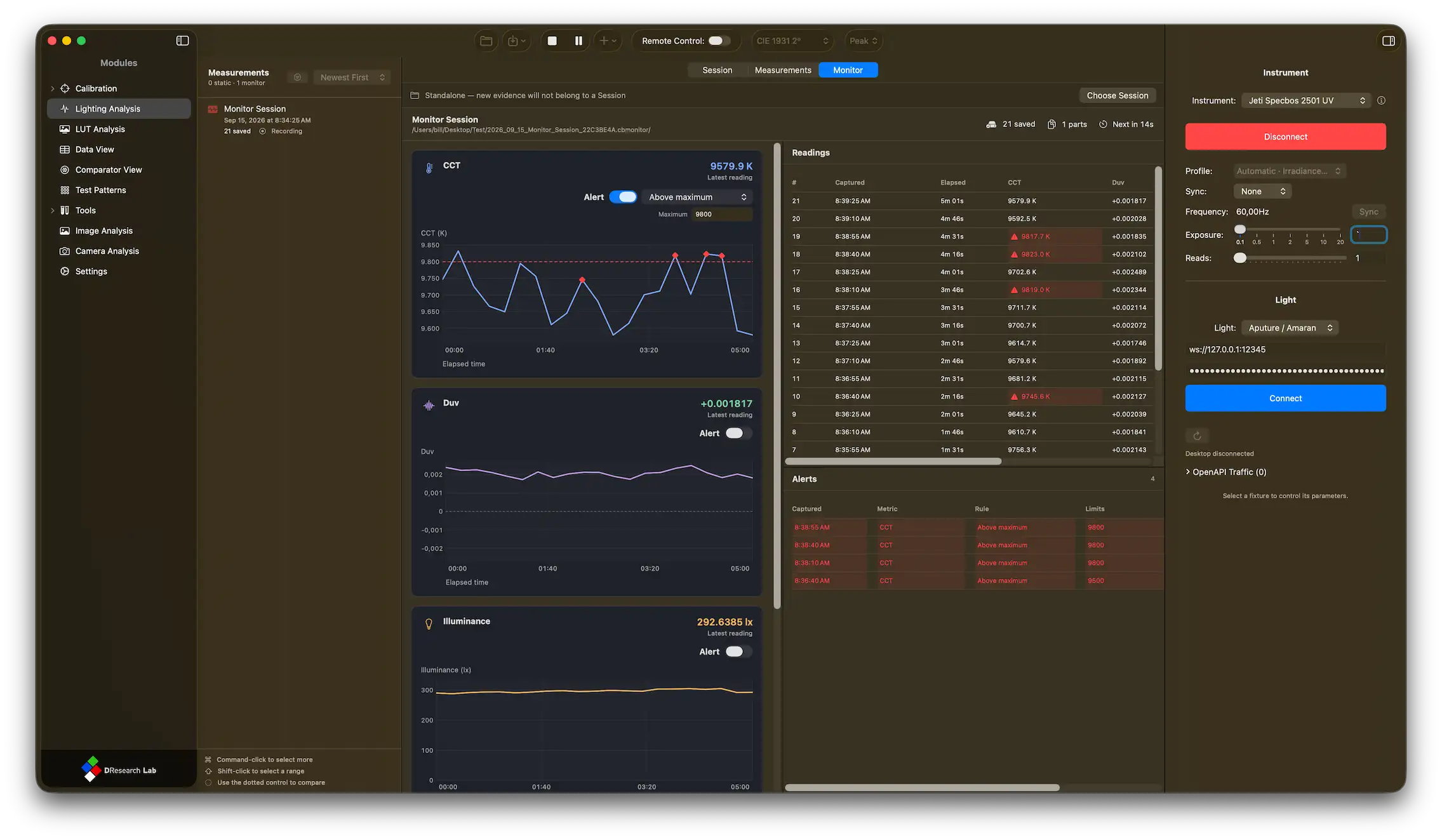

Monitoring & Alerts

Set limits for key lighting metrics and let ColorBox alert you when measurements move outside your tolerances. Catch changes in brightness, color temperature, or Duv as they happen, helping you spot instability and unexpected shifts during a test. Keep monitoring while you focus on the setup.

CCT Shift Tolerance

Instant warning when thermal drift exceeds target threshold

Live Guard

Duv Out of Spec Warning

Detect magenta or green hue casts immediately

Real time

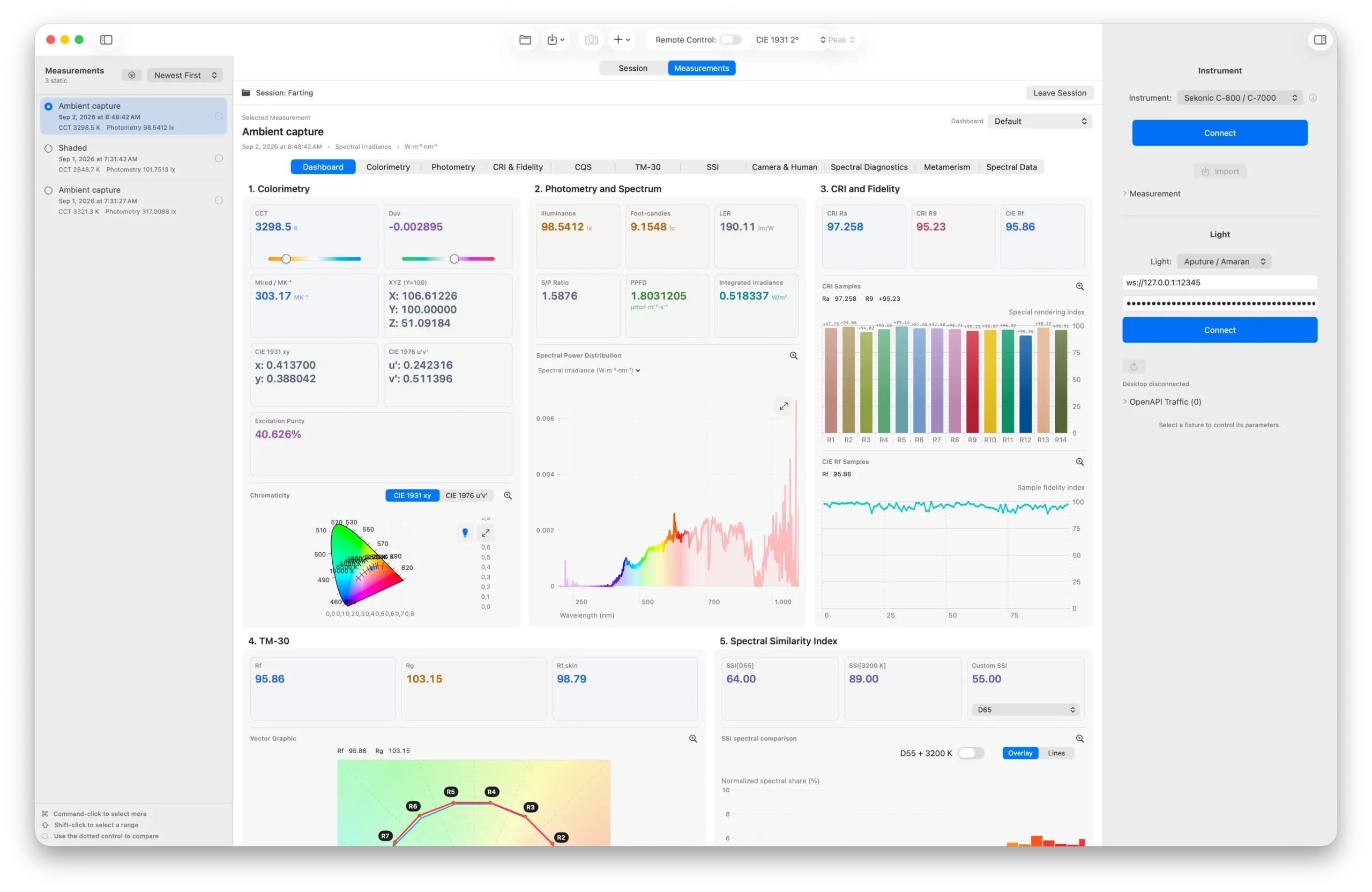

Dashboards

See the measurements that matter with dashboards tailored to cinema, lighting review, manufacturing, print viewing, human-centric lighting, horticulture, and research. Each brings relevant metrics, charts, and spectral evidence into one focused view. Switch perspectives to explore the same measurement for different applications and make informed lighting decisions.

Cinema & LUT

CCT · SSI · TLCI ·TM-30

Horticulture

PPFD • YPFD • Far-Red

Human Centric

Melanopic EDI • CS

Automatic Light Control

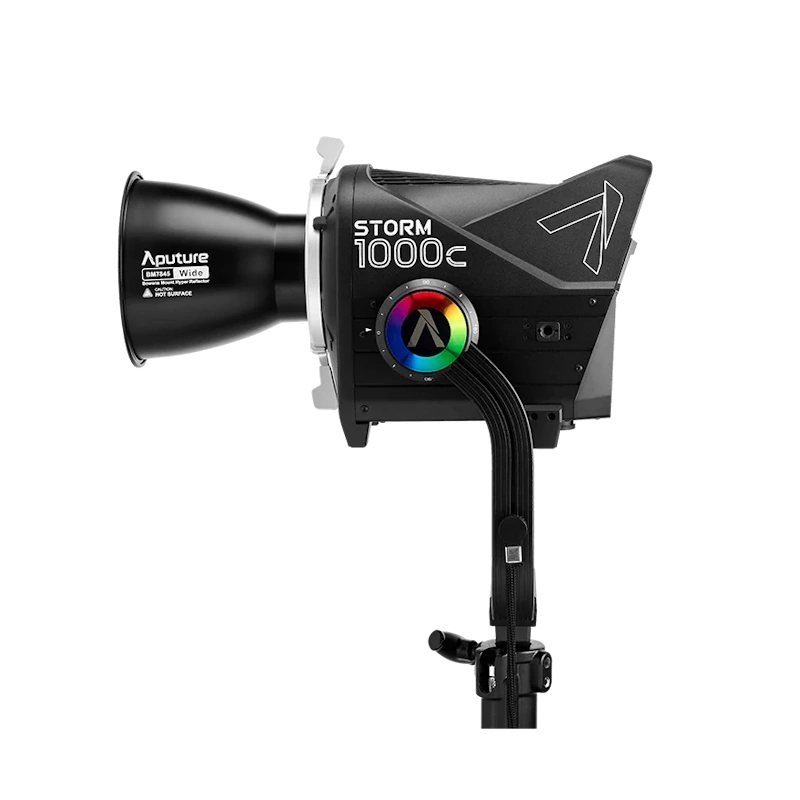

Control compatible Aputure, Amaran, Godox, and Philips Hue lights directly from ColorBox, alongside lighting systems using Casambi, Matter, DMX, Zigbee, and DALI. Adjust brightness, color temperature, and color settings where supported, then measure the results without switching applications. Automate repeatable measurement sequences, evaluate fixtures across their operating ranges, and compare light sources under consistent test conditions.

Aputure

Amaran

Godox

Hue

Casambi

Matter

DMX

Zigbee

DALI

Spectral Mixer

Design and explore custom light spectra with an intuitive, interactive spectral editor. Mix measured light sources and LEDs, generate synthetic spectra by clicking and dragging, and precisely shape individual spectral peaks. ColorBox's real-time solver instantly calculates CCT, Duv, illuminance, CRI, TM-30, SSI, melanopic EDI/DER, and other spectral metrics as you make adjustments.

Combine Spectral Mixer with Spectral Match to identify the LED modules needed to reproduce your custom spectrum, bridging the gap between spectral design and real-world light source manufacturing.

Spectral Match

Spectral Match finds the LED combination that best reproduces any spectrum. Choose from 339 built-in LED spectra across 38 manufacturers, or use your own measurements. Constrain the search by layout, CCT or white point, then compare candidates side by side and send the best one straight to the Mixer.

Start from any light

Use a spectrum you measured, a Mixer you designed, a standard illuminant or an imported file. Spectral Match compares across the full range of the spectrum you give it, ultraviolet and infrared included. It never trims the range to make a score look better.

A curated LED library

Search 339 LED spectra from 38 manufacturers, from ams OSRAM and Lumileds to Nichia, Cree LED and Seoul Semiconductor. Narrow the search by manufacturer, application category and production status

Choose the layout

Let ColorBox search freely, or fix a layout: single color, bi-color, RGB, RGBW, RGBWW, or multispectral designs of up to 12 channels. Search separate LEDs, multichannel packages, or both.

LED & Lamp Database

Look up a light source before you build with it. Browse the spectra, color metrics and optical data of commercial LEDs and lamps, all in one place inside ColorBox.

339 spectra, 38 manufacturers

LEDs, lamps and lasers from ams OSRAM, Lumileds, Nichia, Cree LED and others. Search by manufacturer or model, then filter by technology and production status.

Spectrum and color at a glance

Each part shows its spectral power distribution, its position on the CIE chromaticity diagram and its key color metrics. Select several parts to compare them side by side.

Optical data included

Where a manufacturer provides them, view photometric distributions, geometry files and IES data, including a room preview of the light. You can save the original files.

Straight into your analysis

View a part’s IES light distribution as a chart, or render it in a room preview lit with the LED’s own spectral color. Add any part to your measurements for CRI, TM-30 and SSI analysis, or use it in Spectral Match.

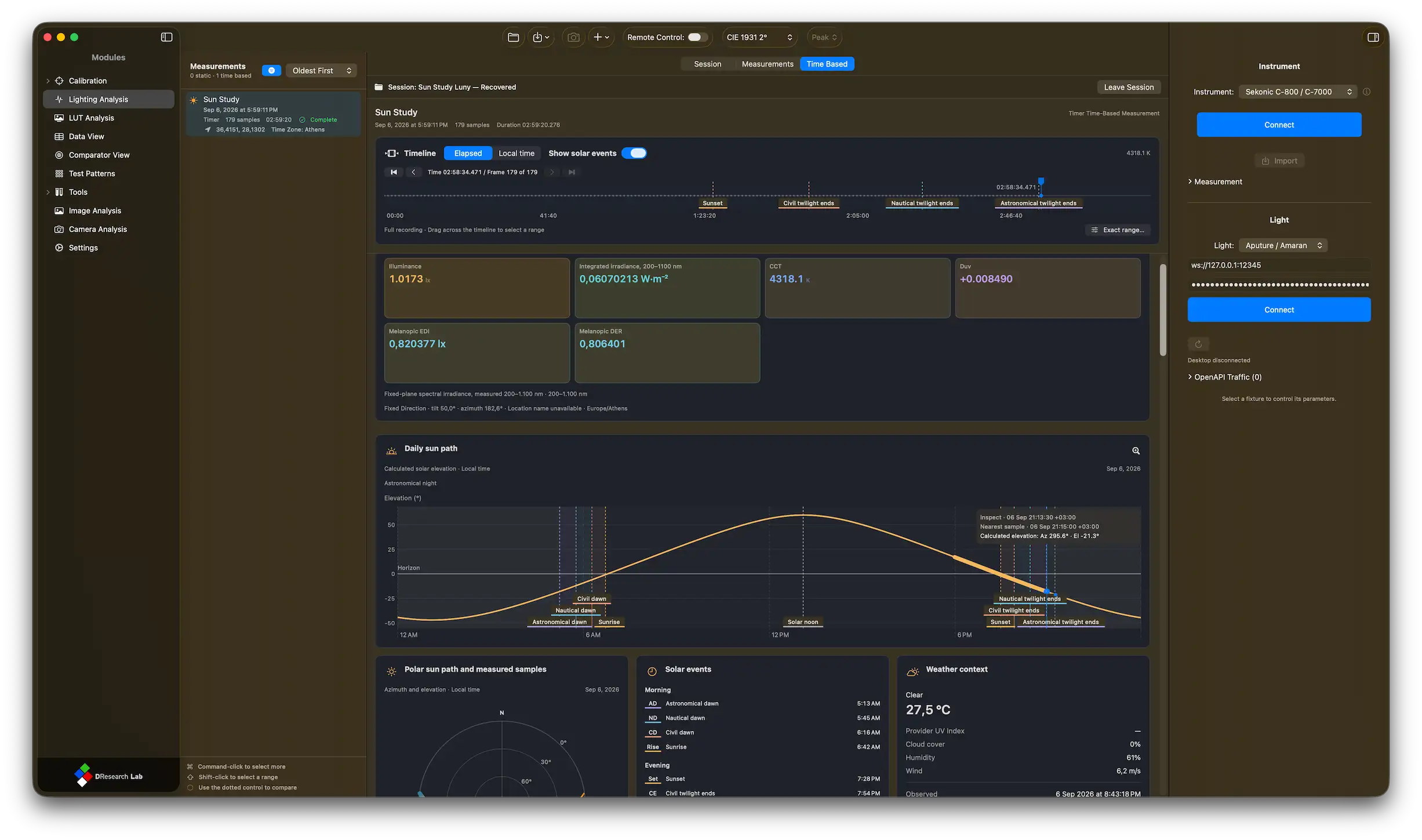

Sun Studies

Study how daylight changes throughout the day with measurements linked to location, sun position, and available weather conditions. Track illuminance, color temperature, spectral irradiance, and supported UV and NIR levels alongside the sun’s path. Capture manually or at scheduled intervals to evaluate natural light for filming, architecture, horticulture, and research.

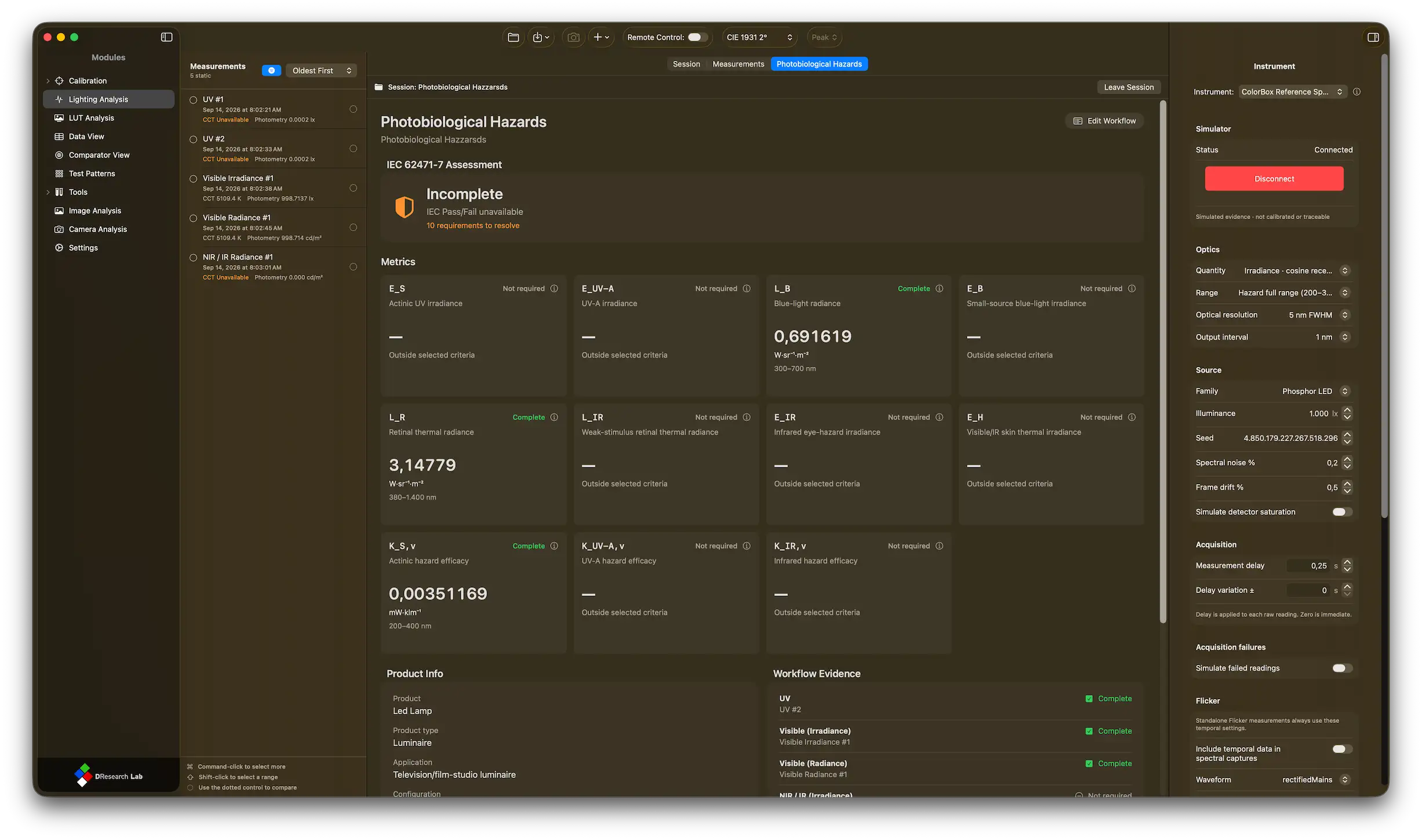

Hazards

Evaluate photobiological hazards using assessment profiles based on IEC 62471:2006 and IEC 62471-7:2023. Review supported UV, blue-light, and thermal hazard metrics against applicable exposure limits, with incomplete measurement evidence clearly identified. Create detailed reports to support professional safety assessments and compliance documentation.

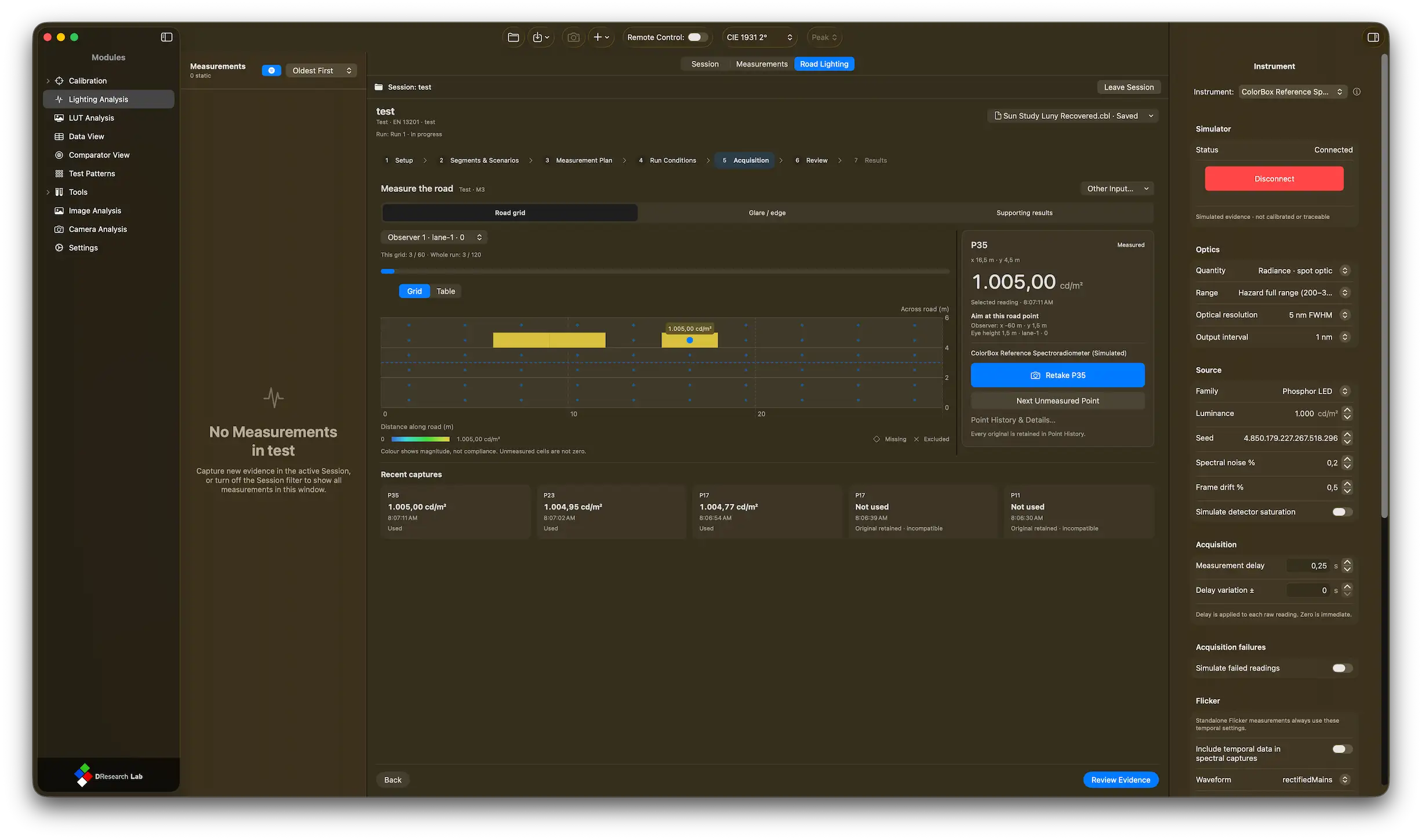

Road Lighting

Evaluate street and road lighting using EN 13201 assessment profiles and measurement grids. Measure luminance, illuminance, and uniformity, compare results against selected lighting-class criteria, and identify uneven coverage or underlit areas. Create professional reports to support installation reviews, lighting upgrades, and compliance assessments.

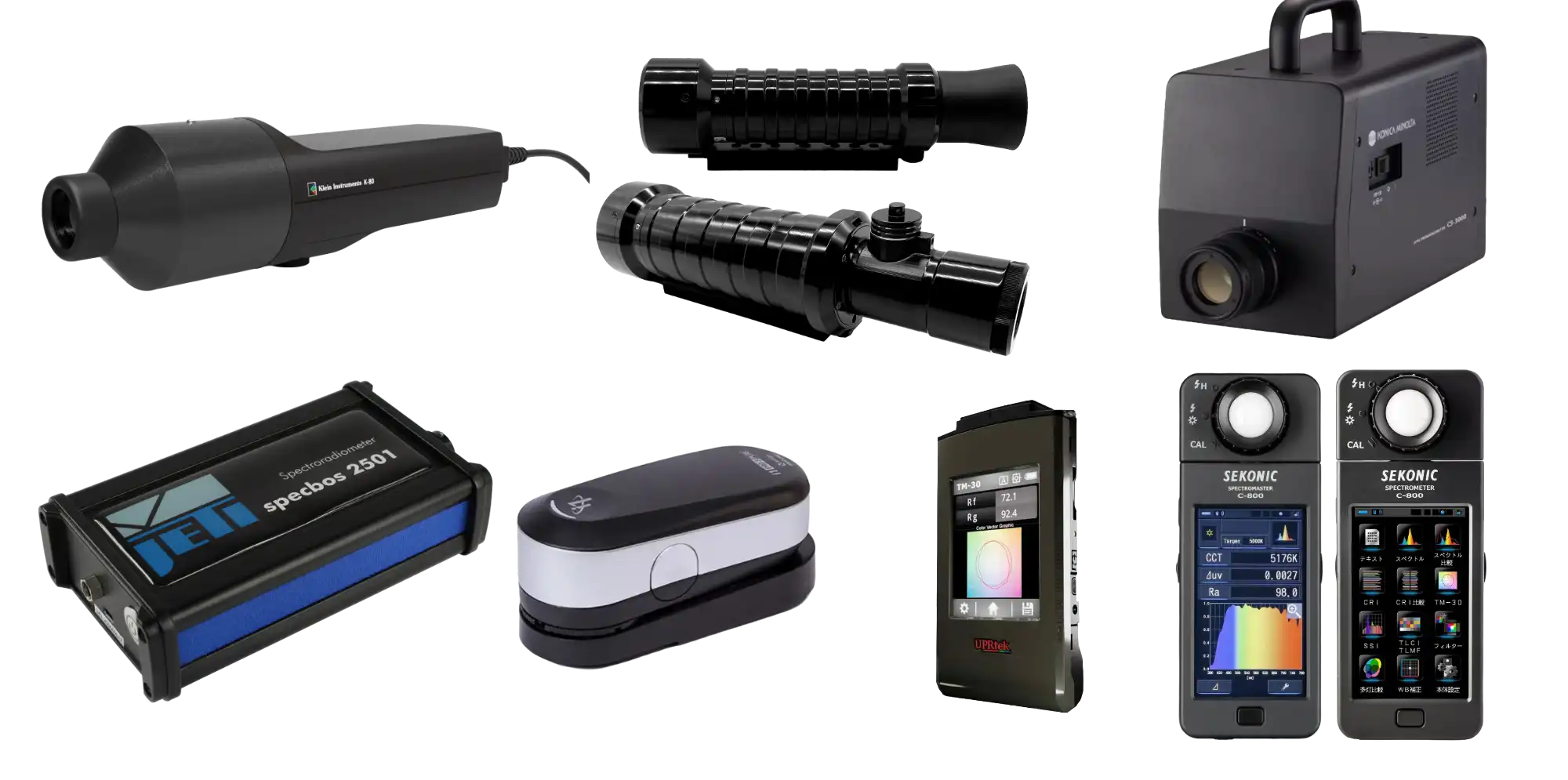

Instrument Agnostic

Bring instruments from different manufacturers into one consistent analysis workflow.

The Calibration module also supports colorimeters from X-Rite, Calibrite, Colorimetry Research, and Klein, including the X-Rite i1Display 3 and Colorimetry Research CR-100.

Capture, compare, and report through the same workspace, with available metrics matched to each instrument’s capabilities and accessories.

We are working with manufacturers to support more instruments.

X-Rite i1Pro 2 / 3

Sekonic C-800 and C-7000

UPRtek CV600

JETI 1501/1511 & 2501/2501

Konica Minolta CS-2000/CS-3000

 LIT DUO 1

GL Optic Mini

Colorimetry Research CR-250/CR-300

Barbieri SpectroLFP qb

Export & Reporting

Share your results the way your audience needs them.

Export spreadsheet-ready data, branded PDF reports and high-resolution chart images directly from your measurements.

Time series, sun studies, sequences and sequence comparisons each have their own data export and report, so long-running studies can be shared as easily as a single measurement.

Time series, sun studies, sequences and sequence comparisons each have their own data export and report, so long-running studies can be shared as easily as a single measurement.

Flexible Export

Export in CSV, TSV or CGATS. Choose the metrics you need from spectrum, colorimetry, photometry, color rendition, and alpha-opic and horticultural results, for selected or all measurements.

PDF Reports

Create a detailed report for each measurement, a side-by-side comparison, or a report focused on a dashboard such as Comparison, Aquarium or Metamerism. Add your company logo and customer details, and choose a single report or one report per measurement.

Export Images

Export any chart at 1080p, UHD or 8K as PNG or JPG. Choose a light or dark style with a styled or transparent background, and batch-export individual measurements or comparisons into organized folders.

Native MacOS Application

Built natively for macOS, iPad, with iPhone Remote Control App, ColorBox delivers energy-efficient performance for extended measurement sessions, with silent operation on fanless Macs.

Run studies for up to 18 hours on a single charge and take your analysis from the studio to the field. Battery life varies with your Mac, connected instruments, and workload.

System Requirements:

  • macOS 26 or later.
  • Apple silicon or Intel: the installed build runs natively on both.
  • A Metal-capable GPU, which every Mac that runs macOS 26 has.
  • 1 GB of free disk space; the installed app is about 815 MB.
    Internet to activate a license, then periodic revalidation with an offline grace period of normally 15 days.
